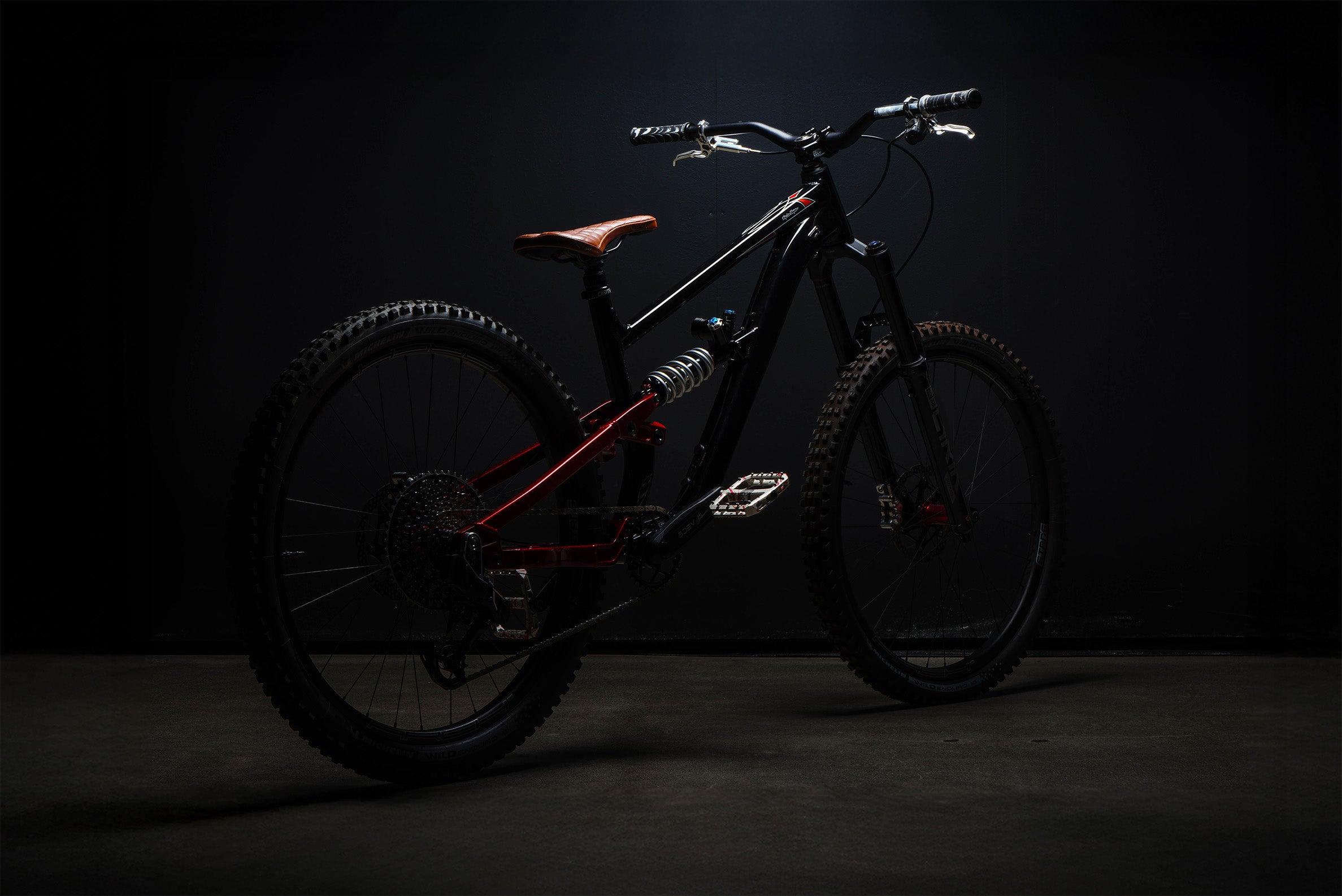

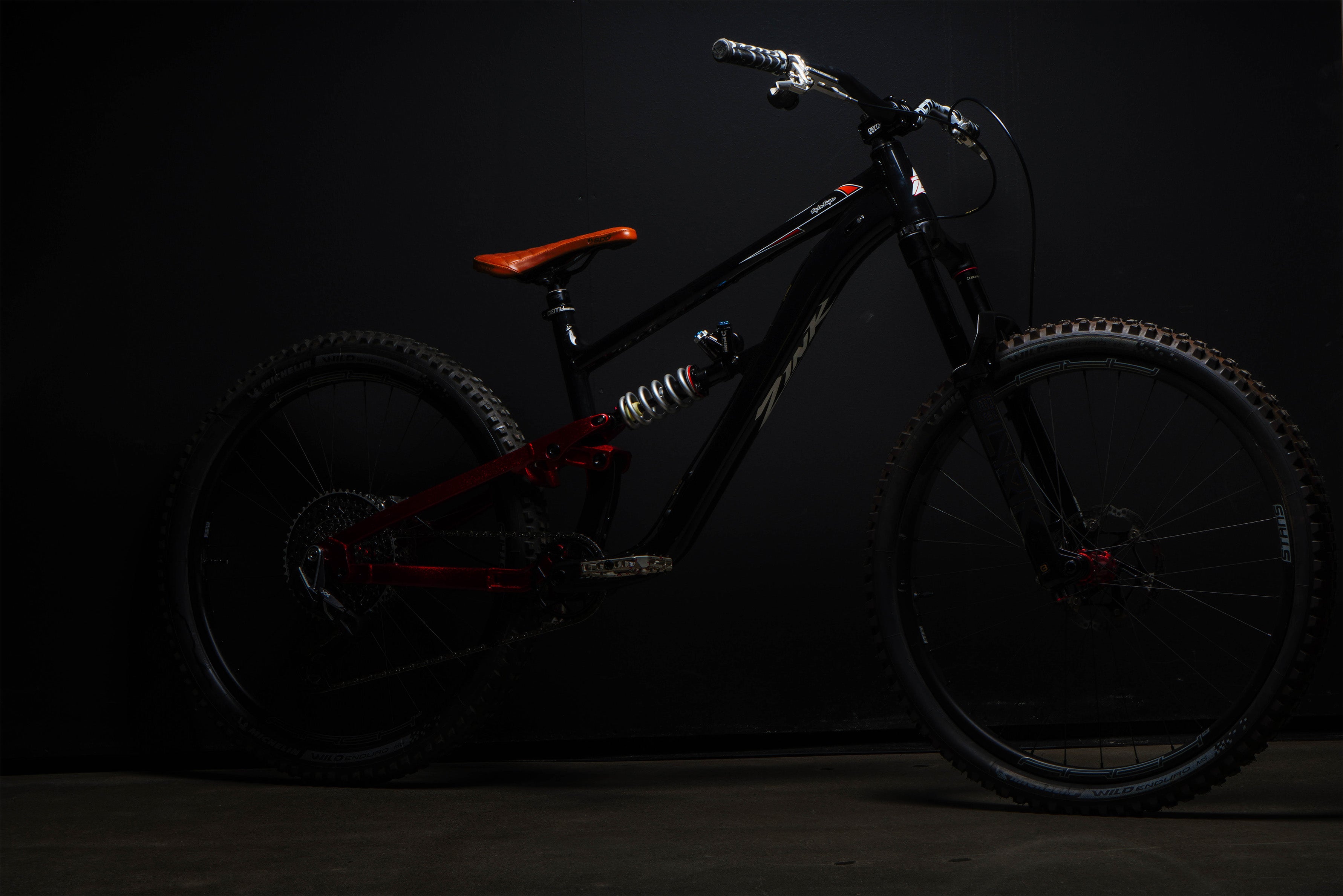

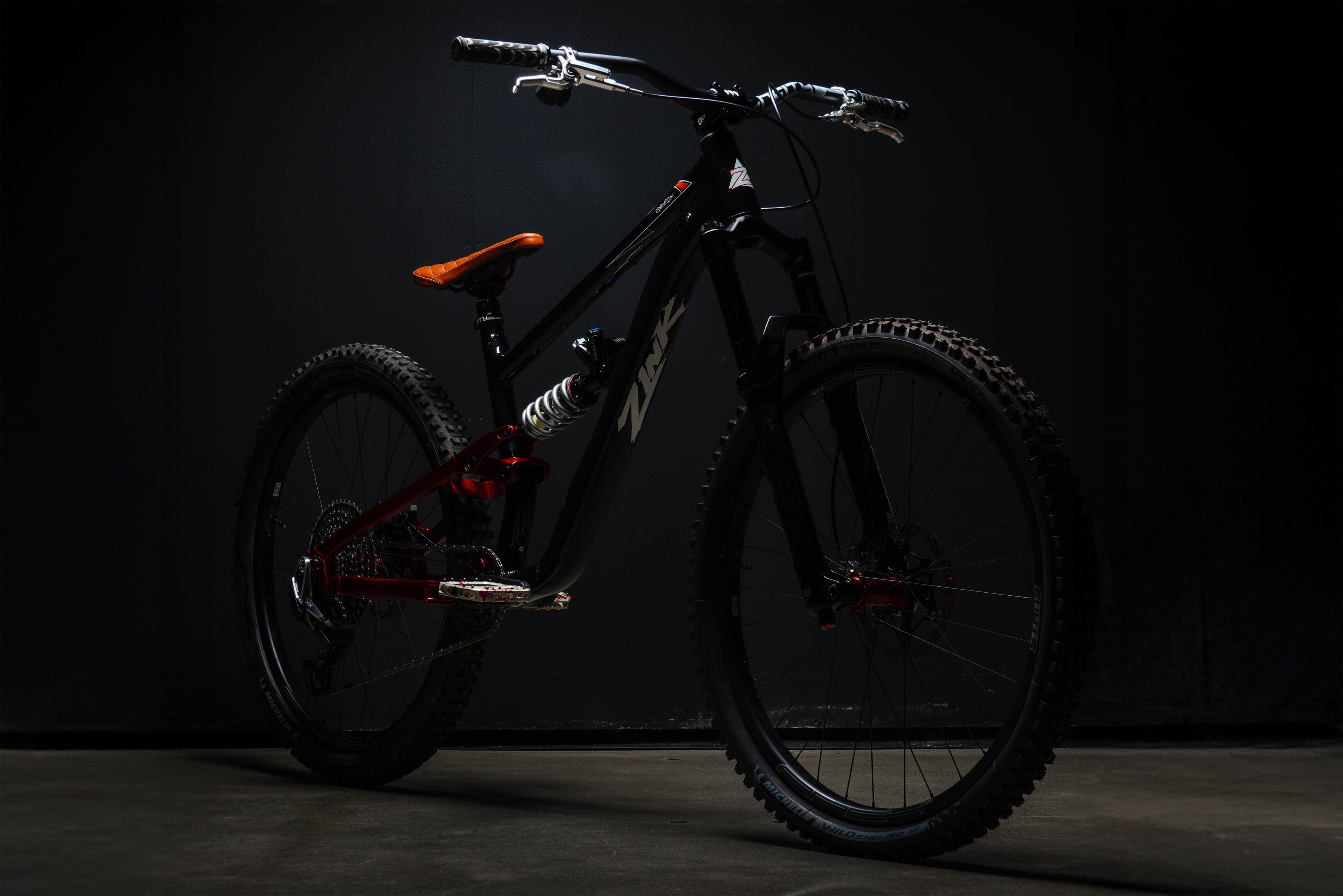

VACAY Troy Lee S.E

$1,890

Shock not included

  • Build Options

  • Size

Expected Delivery: June, 2025

Custom Graphics
& Add Ons

Select Headset
Select Water Bottles

limited release

our first complete bike option

The Art Of Confidence

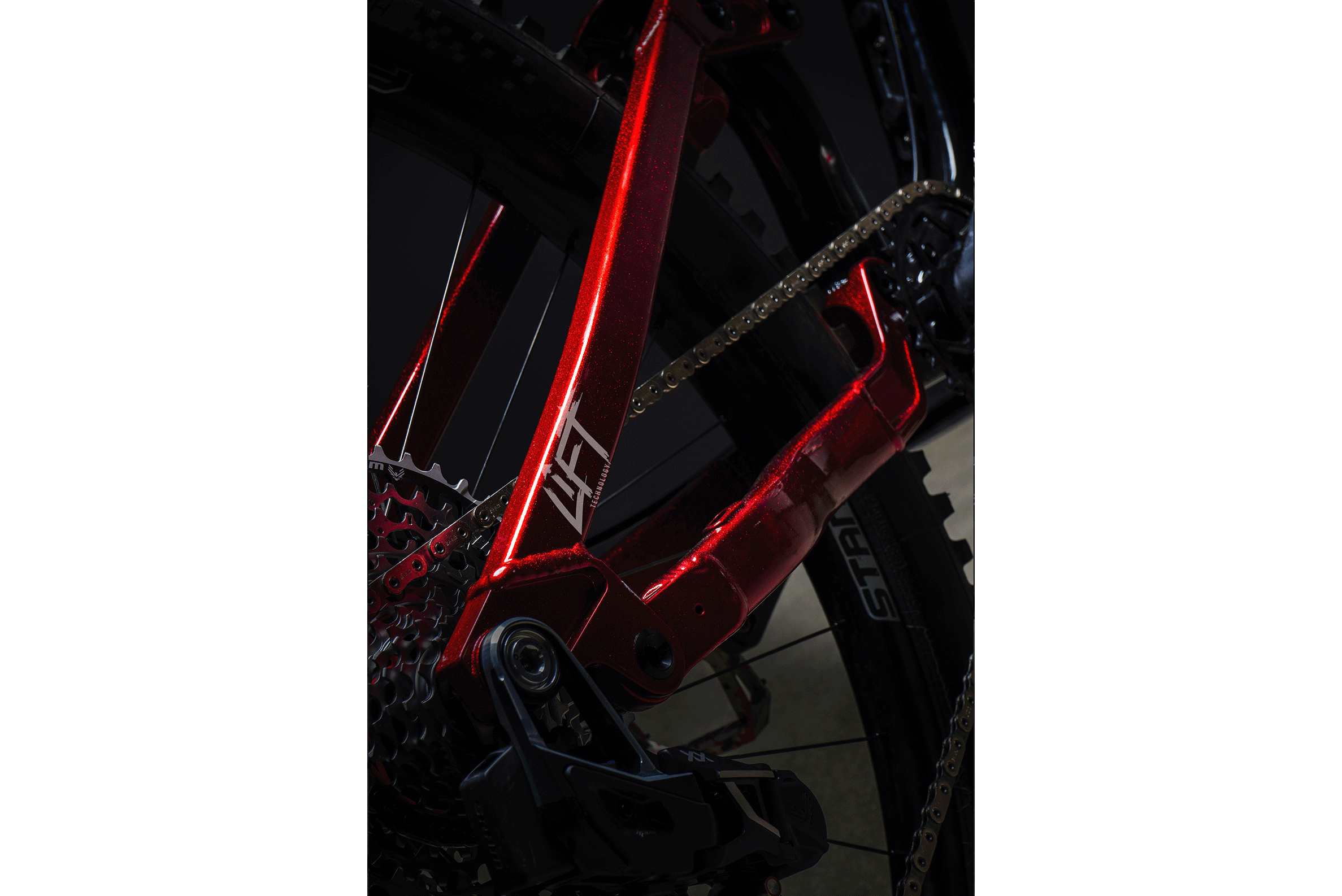

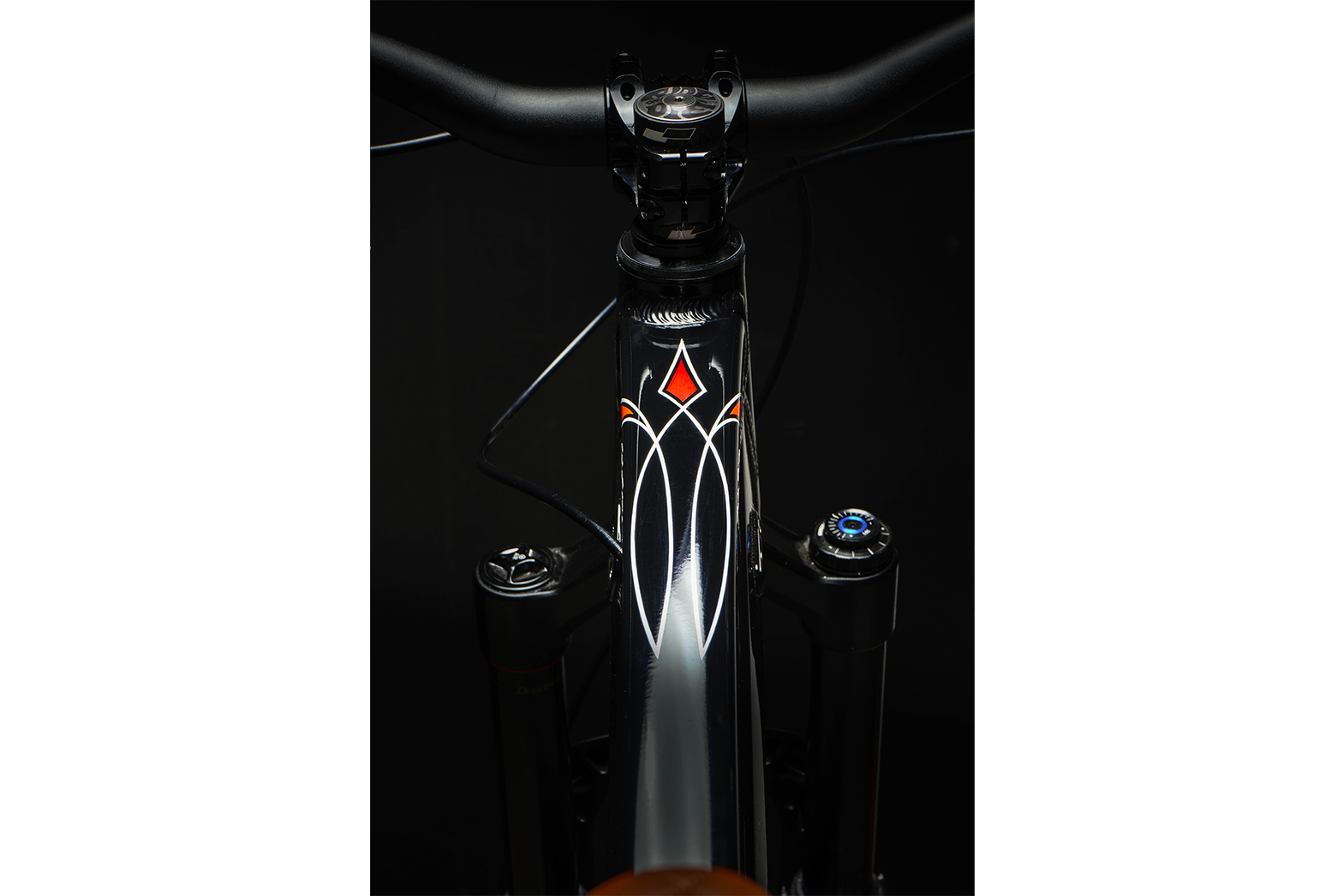

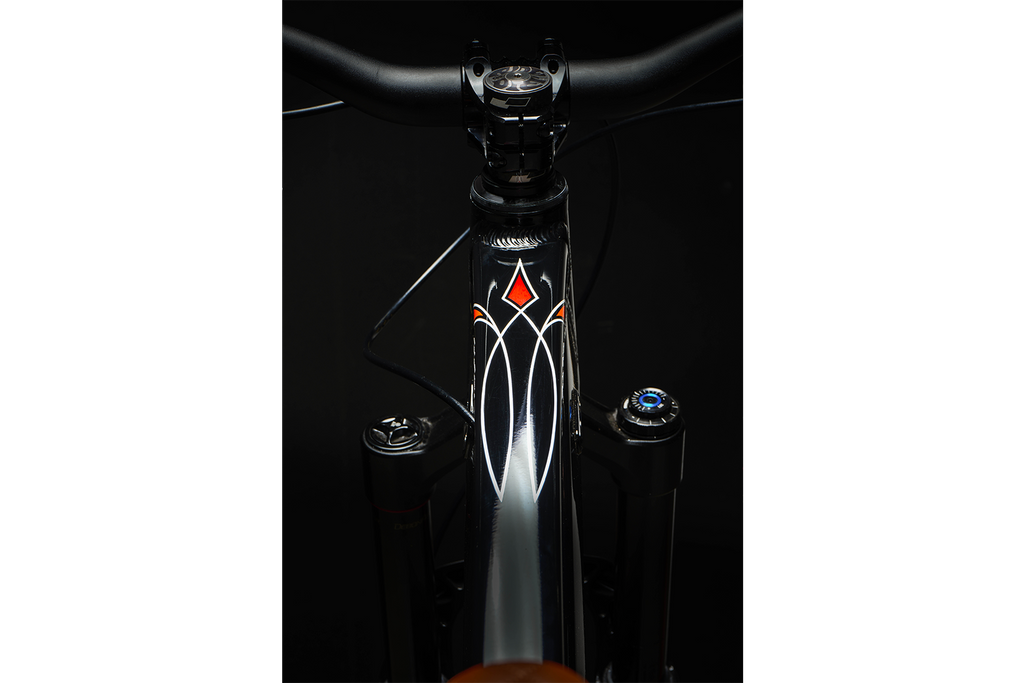

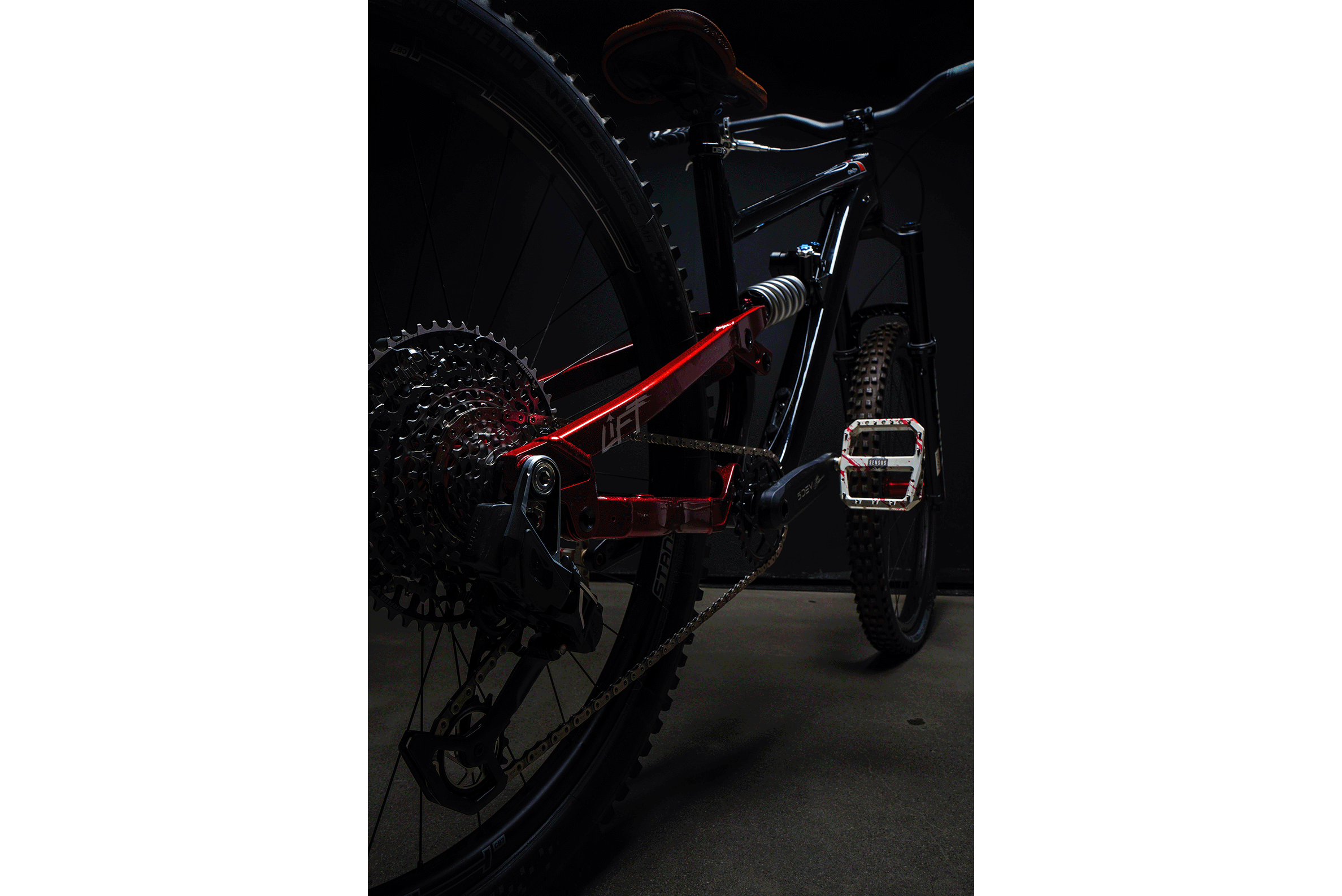

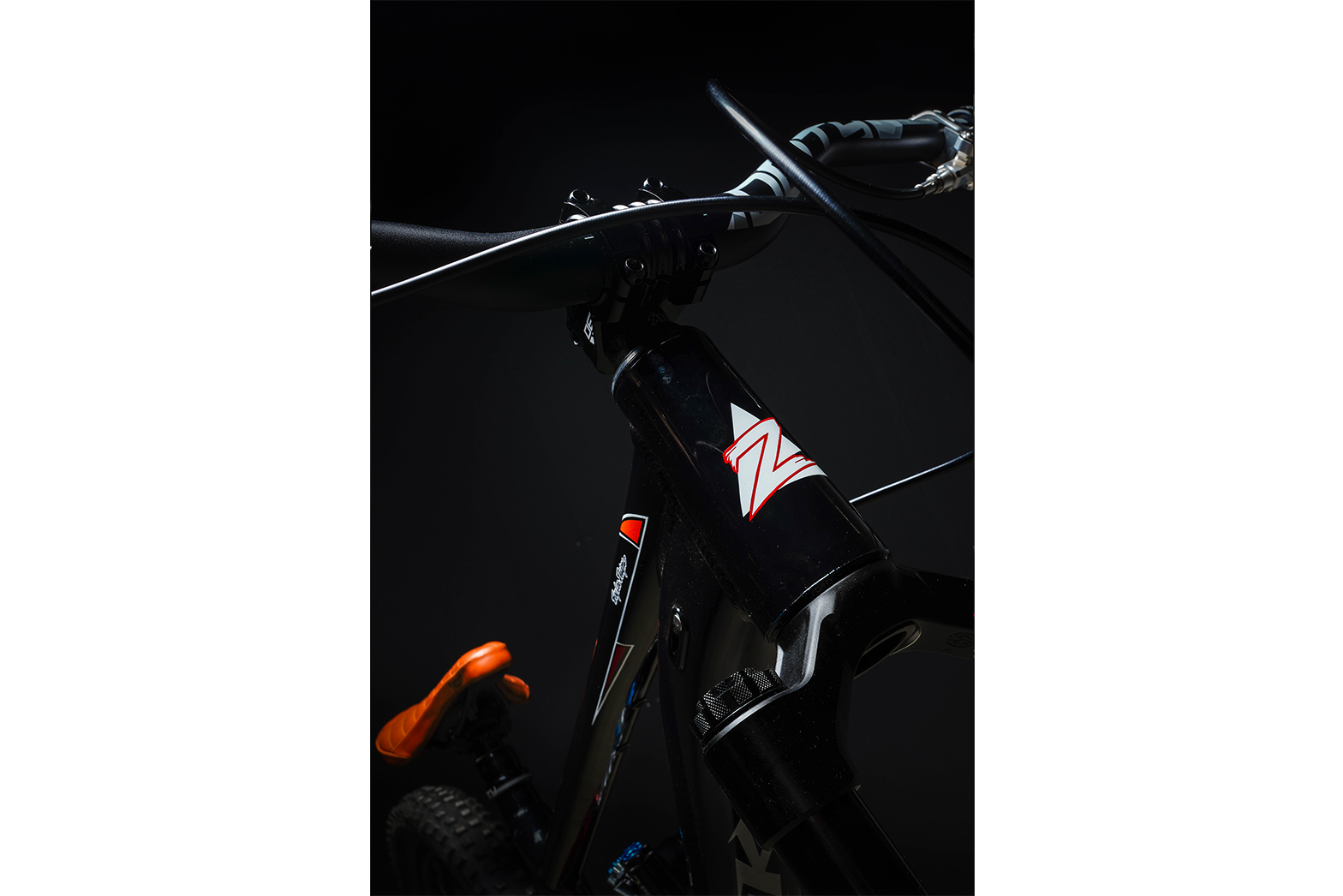

Our Special Edition collaboration with Troy Lee—the most prolific artist in the two-wheeled world—is nothing short of a rideable masterpiece. Cam’s career, spent proudly adorned in Troy Lee Designs gear, has beautifully infused itself into the soul of Zink Bikes. Each frame showcases iconic pin-striping meticulously executed by the legendary TLD Paint Shop, complemented by a striking candy-apple swing arm. This special edition seamlessly blends Cam’s personal signature with our unmistakable Zink Bikes brand, creating a bike that's equal parts art and attitude.

Our first complete option available in a drool worthy custom build:

Choose Rear Shock Of Your Choice in Prompt

ROCK SHOX LYRIK ULTIMATE 160MM 29” boost (27.5" fork and front wheel available upon request)

SRAM XX1 SL DERAILLEUR, CASSETTE, CHAIN AND SHIFTER

ONYX VESPER HUBS

STAN’S FLOW MK4 (27.5” REAR) STAN’S ARCH MK4 (29” FRONT)

CAM ZINK SIGNATURE 5DEV CRANKS

DEITY CZ40 BARS / COPPERHEAD 42MM STEM

LEWIS LHP-S4 BRAKES

MICHELIN WILD ENDURO TIRES

SENSUS CRUE PEDALS

SENSUS LITE GRIPS

SDG TELLIS V2 200MM DROPPER POST

SDG/SENSUS LEATHER BEL-AIR 3 SEAT

Options available by notating in your order:

(copy, paste and answer in your checkout notes)

1: Rear Suspension Choices Prompted (nothing by default)

2: Headset Choices Prompted (nothing by default)

3: Red or Black Onyx Hubs (black by default)

4: Michelin Wild Enduro MH or MS.  (MS Front + MS Rear by default)

5: Cream or Brown Leather Sensus Seat (brown by default)

6: Sensus Crue Pedal Color: Black, Rose Gold or Polished (black by default)

7: Mullet or 27.5 (29"/27.5" Mullet by default)

 8: Deity Copperhead Stem; 35mm, 42mm, or 50mm (42mm by default)

  • Troy Lee Designs X Zink Bikes Collab
  • Designed around a 29” front wheel and 27.5” rear wheel
  • 63.9 head-tube angle / 37mm BB Drop. (Low Flip-Chip Position with 160mm Travel Fork and 29”/27.5” wheels)
  • 65 head-tube angle / 25mm BB Drop (High Flip-Chip position with 160mm Travel Fork and 29”/27.5” wheels)
  • 305mm Seat Tube Insertion capable of maxing out a 200mm Dropper Post (Regular)
  • 330mm Seat Tube Insertion capable of maxing out a 220mm Dropper Post (Large)
  • Threaded BB - 73mm BSA (photo samples shown with press-fit bb)
  • ZS 44/56 Headset
  • 230mm x 65mm rear shock size
  • 31.6 Seat Tube Diameter
  • Boost 148x12 Rear Axle
  • 29” or 27.5” front wheel capable
  • Internal and external cable routing options
  • 180 post mount rear brake mounting
  • UDH - Universal Derailleur Hanger
  • Fidlock Ready - Base Included
  • Frame weight: 7.8 lb / 3.5 KG (no shock)
